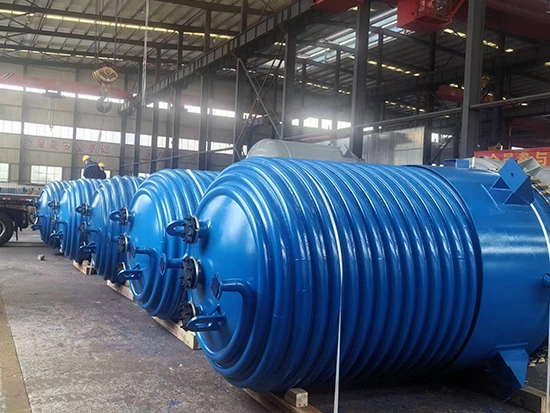

    Large glass lined reactor with half pipe coil jacket, horizontal type
  • Glass Lined Reactor, Half Pipe Coil Jacketed
    Large vertical glass lined reactor with half pipe coil jacket and side nozzle openings
  • Glass Lined Reactor, Half Pipe Coil Jacketed
    Half pipe coil glass lined reactor, bottom section with multiple nozzles
  • Glass Lined Reactor, Half Pipe Coil Jacketed
    Half pipe coil glass lined reactor, double course coils

Glass Lined Reactor, Half Pipe Coil Jacketed

Corrosion-resistant reaction vessels with half pipe wrapping around the outside wall of the vessel

Half pipe coil jacketed glass lined reactors are widely used in chemical, petrochemical, pharmaceutical, dye, pesticide, and food industries. Compared with conventional jacketed glass lined reactors, the half pipe coil design offers several clear advantages in terms of safety, heat transfer, rigidity, and corrosion resistance.

  • Capacity range: 50 – 80,000 L
  • Maximum pressure: up to 16 bar (atmospheric to high pressure)
  • Operating temperature range: –19 °C to 200 °C
  • Standards: CE/JIS/ASME/GB
Request a Quote
  • Vessel type and safety

    In half pipe coil jackets, the heating or cooling medium flows in a steady way, which makes them safer than conventional jackets. The design also helps the reactor stay more stable when working under pressure.

  • Heat transfer performance

    The heat exchange area of a half pipe coil is roughly one-third smaller than that of a conventional jacket, but because the medium flows two to three times faster, the overall heat transfer is much more efficient. Conventional jackets often have problems such as flow disturbance, short circuits, or uneven heat transfer. The half pipe coil design avoids these issues and works especially well with liquid heating and cooling media. For steam heating, though, conventional jackets can sometimes be a better option because of the way steam interacts with the grouped pipes.

  • Structural rigidity

    The design of the half pipe coil not only strengthens the vessel but also improves its stability. With an open-flow layout that allows high-speed circulation, it helps reduce external pressure on the inner wall of the reactor, resulting in greater overall mechanical strength.

  • Corrosion resistance

    When cooling water is used, conventional jackets are more likely to suffer corrosion from ions like H⁺ and Cl⁻, which can cause deposits to build up and damage the walls. The half pipe coil design avoids this problem thanks to its faster flow through the upper and lower channels, reducing the chance of buildup and protecting the walls from corrosion.

Dimensions of Half Pipe Coil Jacket Glass Lined Reactors (mm)
Volume (L) 300 500 1000 1500 2000 3000 5000 6300 8000 10000
Item
D 800 900 1200 1300 1300 1600 1600 1750 1750 2000 2000
D1 900 1000 1300 1450 1450 1750 1750 1900 1900 2200 2200
D2 1032 1148 1488 1639 1675 2044 2044 2218 2218 2500 2533
D3 560 630 840 910 910 1120 1120 1225 1225 1400 1400
D4 720 810 1080 1180 1180 1440 1440 1580 1580 1800 1800
D5 350 350 400 400 400 450 450 450 450 510 510
D6 65 65 80 80 80 95 95 95 95 110 110
D7 23 23 30 30 30 30 30 30 30 36 36
H 800 1000 1200 1400 1745 1739 2700 2317 3025 3120 3460
HO 2530 2759 3222 3440 3785 4073 5115 4792 5850 5450 6270
H1 1050 1050 1240 1240 1240 1454 1535 1535 1535 1650 1700
H2 380 409 482 500 500 580 580 640 640 720 710
H3 260 270 300 330 330 330 330 330 330 420 355
H4 / ! 丨/ 960 1335 1242 2000 1490 1700 2000 2650
H5 / / / / / / 700 420 700 900 880
H6 390 420 500 600 600 700 700 700 815 850 850
B1 / / / 507 507 614 614 550 550 550 540
B2 250 270 350 350 370 370 370 370 370 400 450
Power (kW) 1.5 3 4 4 4 5.5 7.5 7.5 11 11 11
Nozzle Specifications (mm)
Volume (L) 300 500 1000 1500 2000 3000 5000 6300 8000 10000
Item
a 125 150 300x400 300x400 300x400 300x400 300x400 300x400 300x400 300x400 300x400
b 100 100 125 125 125 150 150 150 150 200 200
c 65 65 100 100 100 100 100 125 125 200 200
d 80 80 100 100 100 100 100 125 125 150 150
e 65 100 100 125 125 125 125 125 125 125 125
f 65 125 125 125 125 125 125 150 150 125 125
g 65 100 100 100 100 100 100 125 125 150 150
h / / 100 200 125 125 125 150 150 125 125
K / / / / / / / / / 150 150
h~ 80 80 100 100 100 125 125 125 125 125 150
L1-L3 25 32 32 40 40 50 50 65 65 65 65
N1.N2 / / / 50 50 50 65 65 65 65 65
N3 / / / / / / 65 65 65 65 65

We also provide Accessories for Glass-Lined Equipment
Glass Lined Storage Tank
Glass Lined Storage Tank
Glass Lined Column
Glass Lined Column
Glass Lined Heat Exchanger
Glass Lined Heat Exchanger
See More

Open-top glass lined reactors consist of a few important parts: the vessel body, a removable cover, sealing gaskets, and clamps. Sealing gaskets are necessary to form a seal between the cover and the body, while the clamps hold them firmly together, so the reactor stays tightly closed and safe during operation.

The internal design pressure depends on the sealing method. With a packing seal, the vessel is rated for 0.2 MPa. With a mechanical seal, the design pressure can be 0.4 MPa or up to 1.0 MPa, depending on the configuration.

Some glass lined reactor models are equipped with quick-opening manhole covers and dual manholes, to enable easier access for inspection and maintenance. The lid is designed with butt-welded flanges to ensure stronger connections and simplify the installation of extra components, combining durability with practical convenience.

When working with liquid heating or cooling media, the half-pipe coil jacket generally provides better heat transfer performance. Its effective area is smaller, about one-third less than that of a conventional jacket, but the flow rate is two to three times higher. In half-pipe coil jackets, the faster flow helps avoid many of the problems seen in conventional designs, like uneven heat transfer or buildup inside the jacket. This way, the heat spreads more evenly, making the process both more efficient and steadier during operation.

The half-pipe coil jacket is recommended. Cooling water often contains ions such as H⁺ and Cl⁻ that can accelerate corrosion. In conventional jackets, deposits can accumulate and worsen this effect. The faster flow in half-pipe coil jackets minimizes deposits and reduces the risk of wall corrosion.

Yes. These glass lined reactors are CE-certified for the European Union, also comply with Japanese JIS standards, U.S. ASME codes, and Chinese JB standards. Backed by these certifications, they fully meet the compliance requirements for export to EU markets.
